Qisheng Mini Excavator Catalog and Model Sheets
Review the QS mini excavator range using the complete catalog or the individual model sheets below. The current edition is dated October 9, 2026 and includes QS-10, QS-12, QS-15, QS-18, QS-20 and QS-25 series, followed by optional configurations and attachments.
Open the Complete Catalog
Open the Qisheng mini excavator catalog PDF.
The full file is approximately 34.7 MB. If you need only one model, use the relevant sheet below instead of opening the complete PDF. The model sheets are PNG images.
View the Priority Model Sheets
| Series | Key catalog dimensions | Model sheet | Product specifications |
|---|---|---|---|

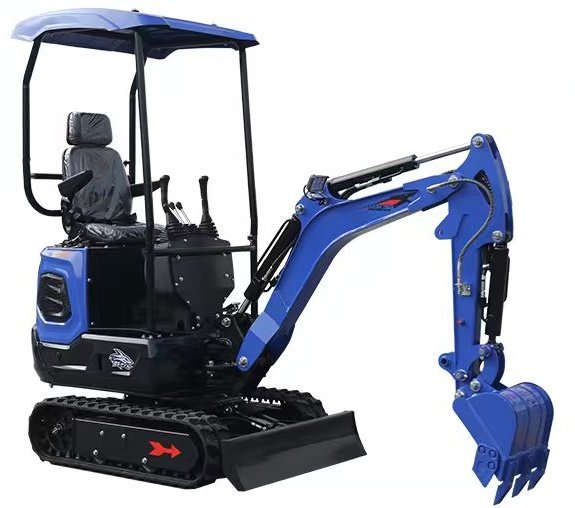

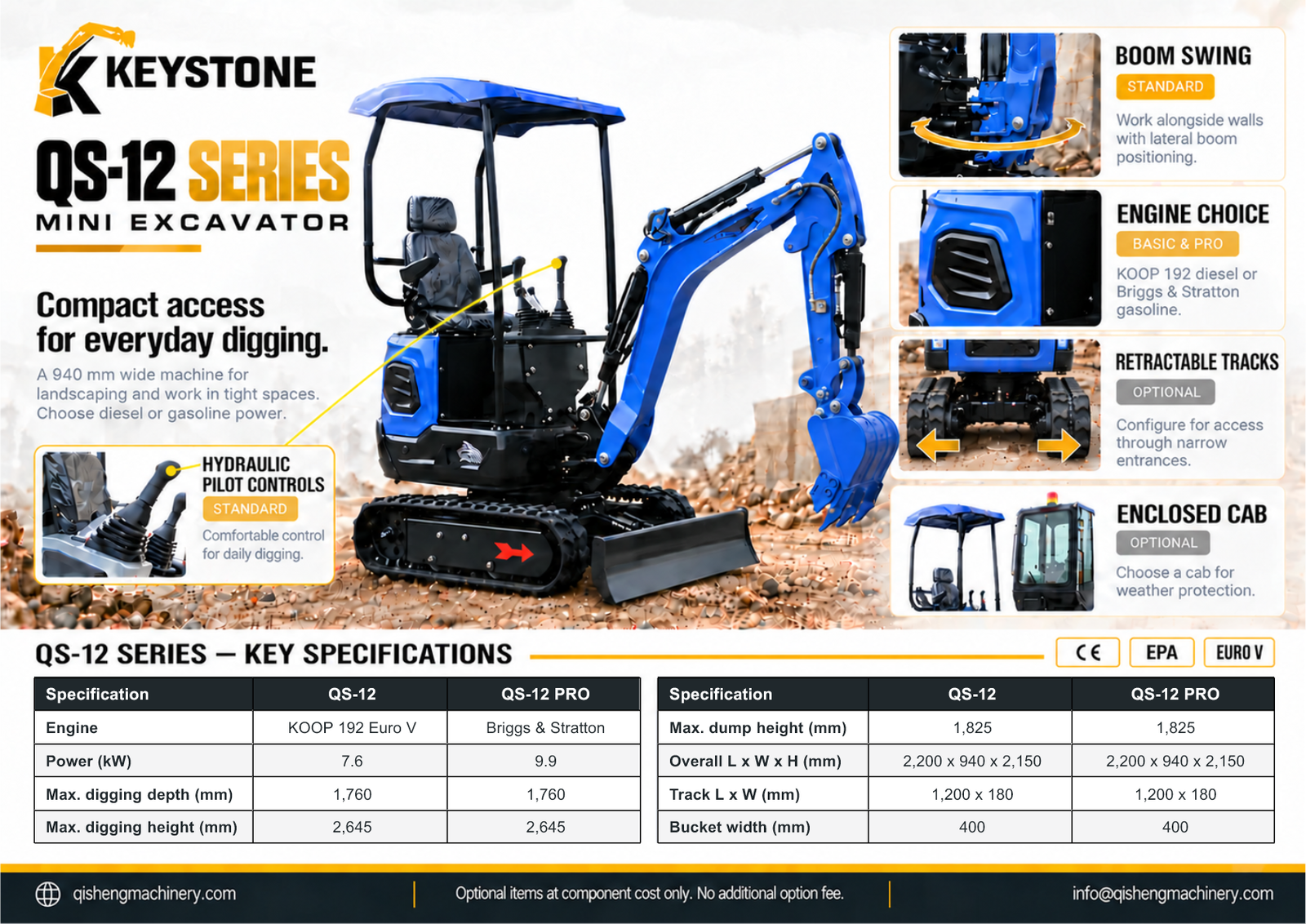

| QS-12 | 940 mm overall width; 1,760 mm maximum digging depth | Open QS-12 sheet | View QS-12 product page |

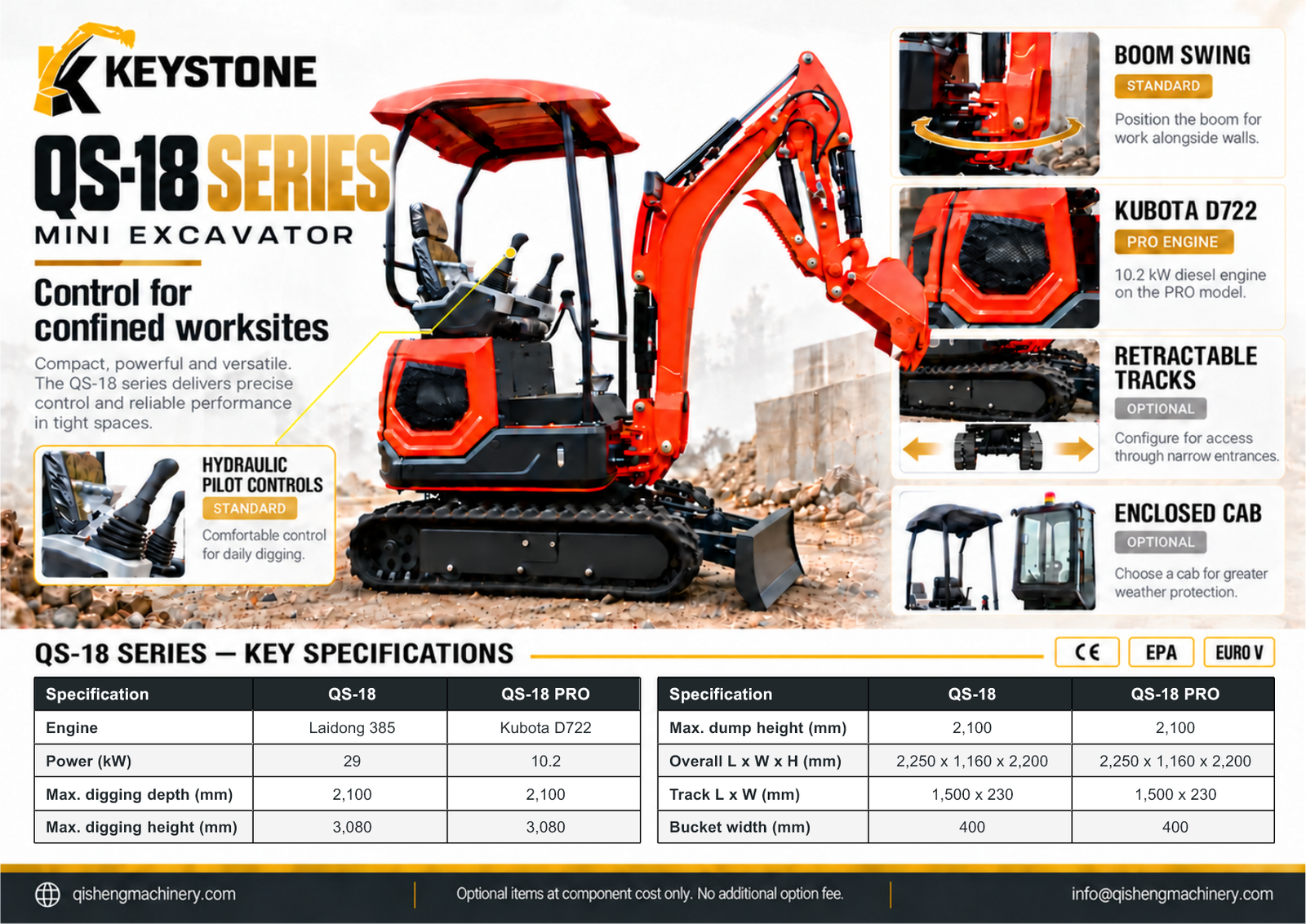

| QS-18 | 1,160 mm overall width; 2,100 mm maximum digging depth | Open QS-18 sheet | View QS-18 product page |

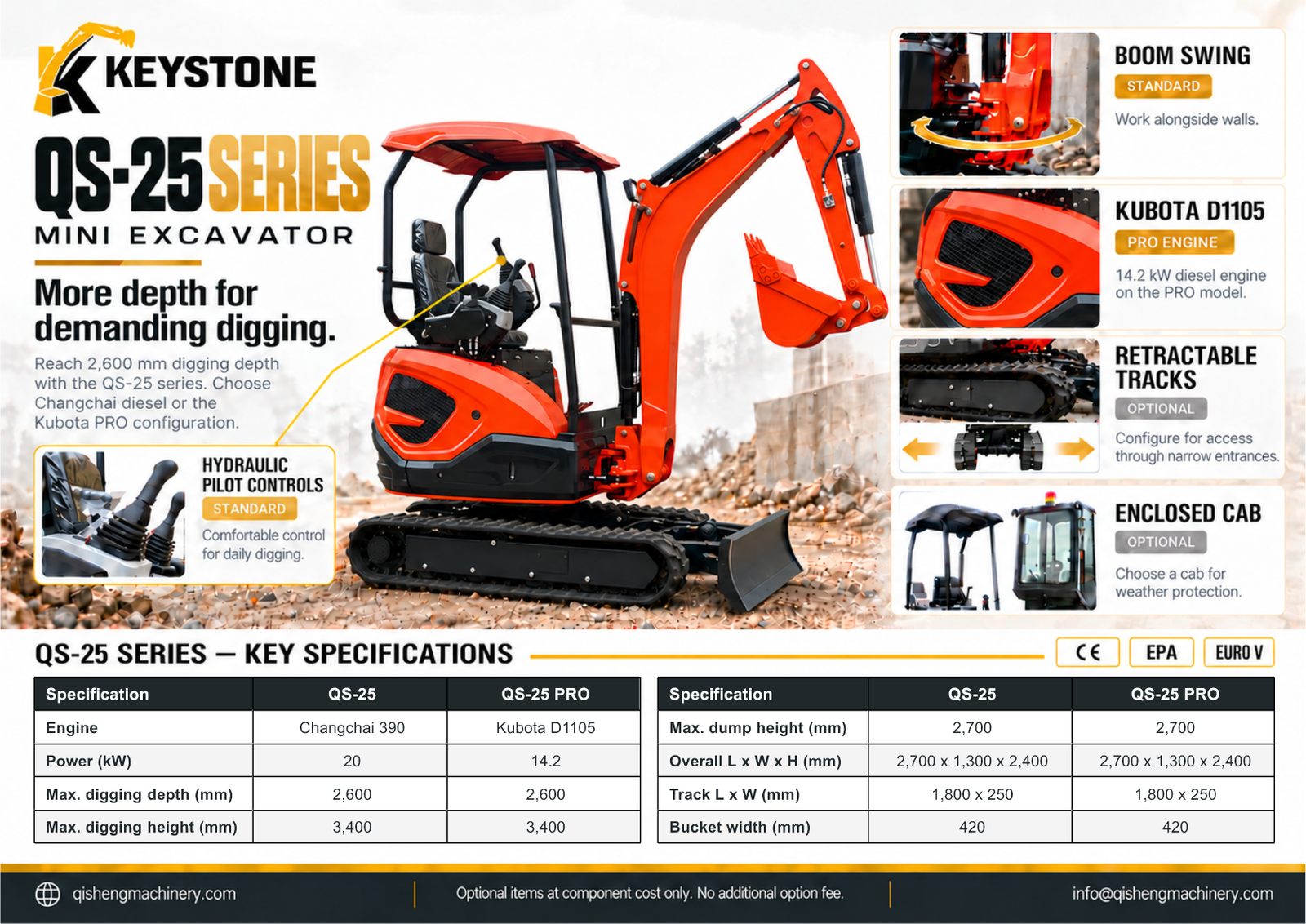

| QS-25 | 1,300 mm overall width; 2,600 mm maximum digging depth | Open QS-25 sheet | View QS-25 product page |
Dimensions refer to the configurations illustrated and tabulated in this edition. Use the written specification for the actual machine being quoted, particularly if the engine, tracks, operator station or attachments differ.
Review Options and Attachments

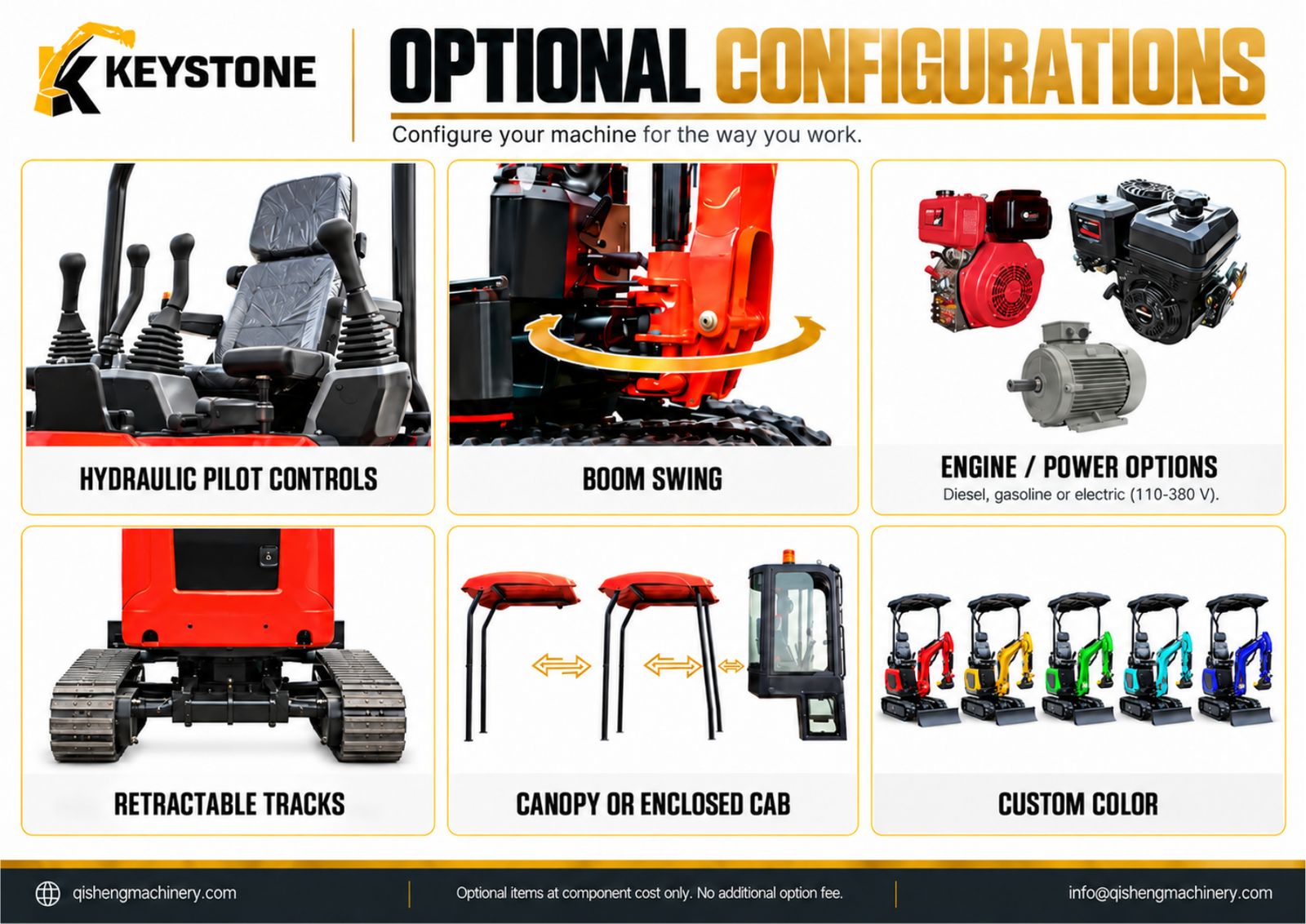

Open the optional configurations sheet to review the six configuration groups shown in the catalog.

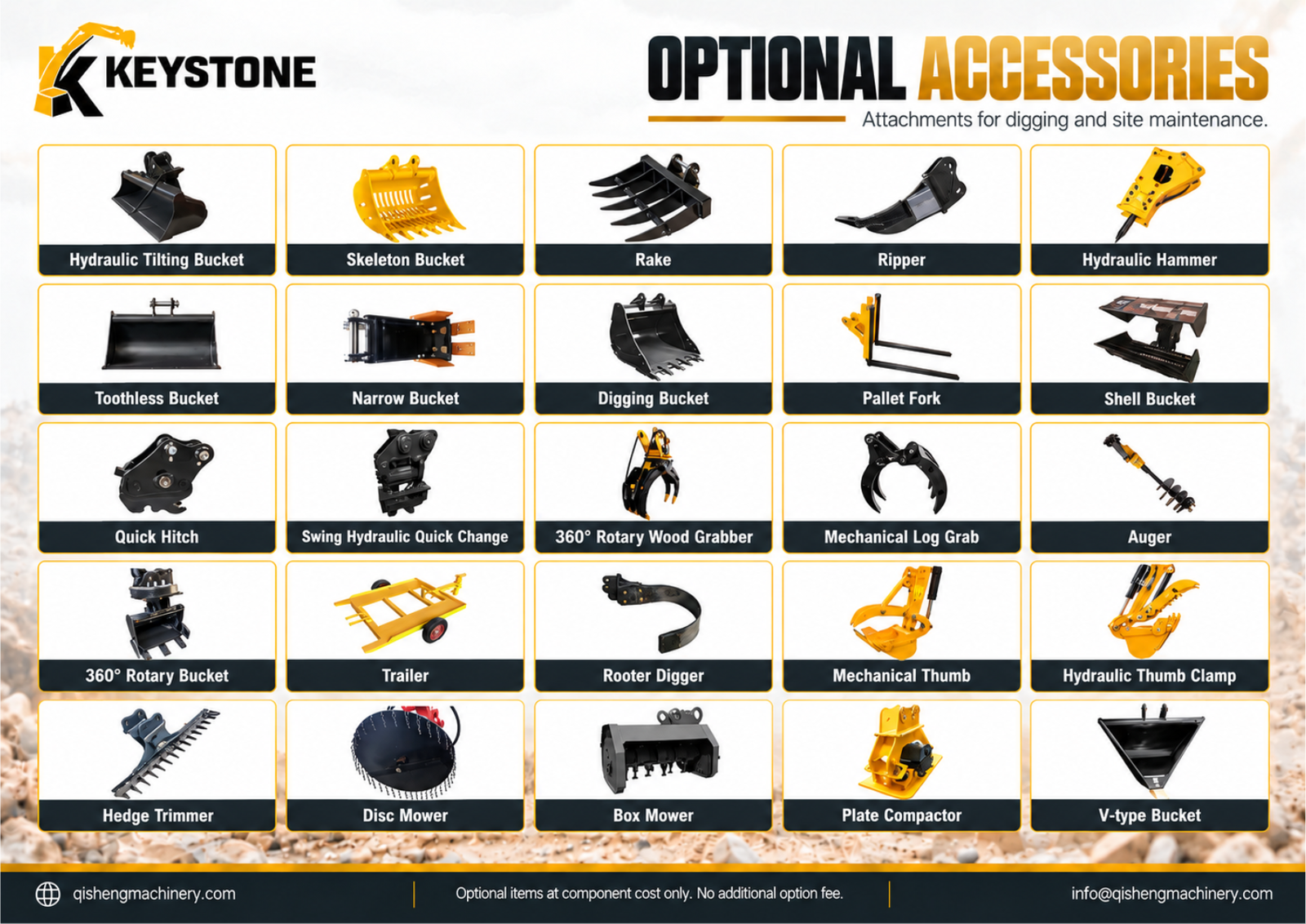

Open the optional accessories sheet to identify tools you would like included in an attachment quotation. Send the tool names or a marked copy of the sheet with the intended machine model. Each tool’s compatibility still needs confirmation.
Request Information Beyond the Catalog
This edition does not provide the operating weights, machine-specific lift charts, optional track-width pairs or complete attachment hydraulic and mounting specifications needed for every buying decision. Request those details for the exact configuration rather than inferring them from the model name or photograph.
To obtain a quotation, tell us the model or task, required access width and depth, preferred options and attachments, and destination country and port. The catalog is a product reference rather than a current stock list or a delivered-price offer.
Contact Qisheng Machinery or compare all mini excavator product pages.
